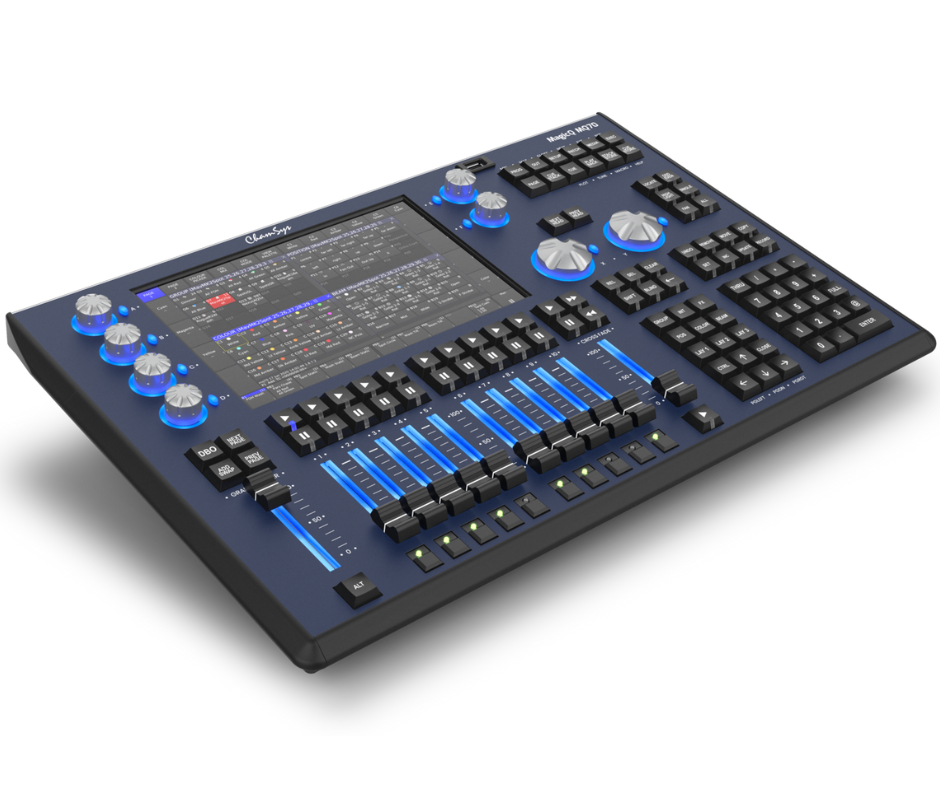

ChamSys MagicQ MQ70 | 24 Universe Console with UPS & Wi-Fi | Compact, Fanless, Carry-On Design

Chamsys CHAMMQ70  (ChamSys mq70)

Portable Lighting Console for Touring & Theatre

ChamSys MagicQ MQ70 is a compact, tour-ready lighting console that delivers professional-grade control in a carry-on-sized chassis. Supporting 24 universes (expandable to 48) and featuring a fanless, silent design, it’s perfect for broadcast, corporate, and theatrical environments where space, portability, and quiet operation are essential.

ChamSys MagicQ MQ70 Competitive Differences

• 24 universes direct from console, expandable to 48 with no external nodes
• Built-in UPS for power failure protection—keeps console and network alive

ChamSys MagicQ MQ70 Description

The MagicQ MQ70 is part of ChamSys’ next-gen compact range, combining powerful features with portability. At just 7kg and under 21 inches wide, it fits in carry-on luggage for most major airlines, making it ideal for fly dates and international productions. This console includes 4 assignable DMX outputs with RDM support and 3 network ports for ArtNet, sACN, and Pathport distribution. It runs ChamSys MagicQ software, supporting advanced lighting control, pixel mapping, and visualisation. The 10.1" high-resolution multi-touch display offers quick access to programming and show playback, while illuminated fader tracks and encoders enhance visibility in dark environments. A standout feature of the MQ70 is its internal UPS, which safeguards against power loss without interrupting Ethernet switches or playback. With built-in Wi-Fi, remote app support is seamless—no router setup required. Silent operation, MIDI I/O, LTC timecode input, and a full suite of external connectivity options make it a versatile choice for complex shows in sensitive settings.

Model Features

• 10.1" HD multi-touch screen with intuitive interface
• 24 universes output, expandable to 48
• Inbuilt UPS for safe power failover
• 4 DMX outputs with RDM support
• 3 network ports for ArtNet, sACN, Pathport
• Built-in Wi-Fi for MagicQ Remote App
• 10 playbacks with dual-color illuminated faders
• 8 rotary encoders with illuminated tracks
• Fanless, silent operation—ideal for theatres and studios

Model Specifications

• Universes Supported: 24 (Expandable to 48)
• Max DMX Channels: 12,288 (Expandable to 24,576)
• Max Fixtures Supported: 12,288 (Expandable to 24,576)
• Max Cues: 5000
• Cue Stacks: 2000
• Groups: 5000
• Palettes: 4096
• Media Server Layers: 50
• DMX Outputs: 4 x 5-pin XLR
• Network Ports: 3
• USB Ports: 5
• Audio Input: 1 (7-band)
• Audio Output: Yes
• MIDI Ports: 1 In, 1 Out
• LTC Timecode Input: 1
• Remote Input: 1
• Power Input: Neutrik powerCON TRUE1 (110–240V AC)
• Power Consumption: Max 35W
• Console Dimensions: 20.6 x 13.7 x 2.3 in (525 x 350 x 60 mm)
• Console Weight: 15.4 lb (7 kg)
• Boxed Dimensions: 26.7 x 11.4 x 19.6 in (680 x 290 x 500 mm)
• Boxed Weight: 22 lb (10 kg)
• Flightcase Dimensions: 23.6 x 7.95 x 16.5 in (600 x 202 x 421 mm)
• Flightcase Weight: 37.4 lb (17 kg)

What's In The Box

• ChamSys MagicQ MQ70 Console
• Dual Colour Desk Light
• Dust Cover
• Neutrik powerCON TRUE1 Power Cable
