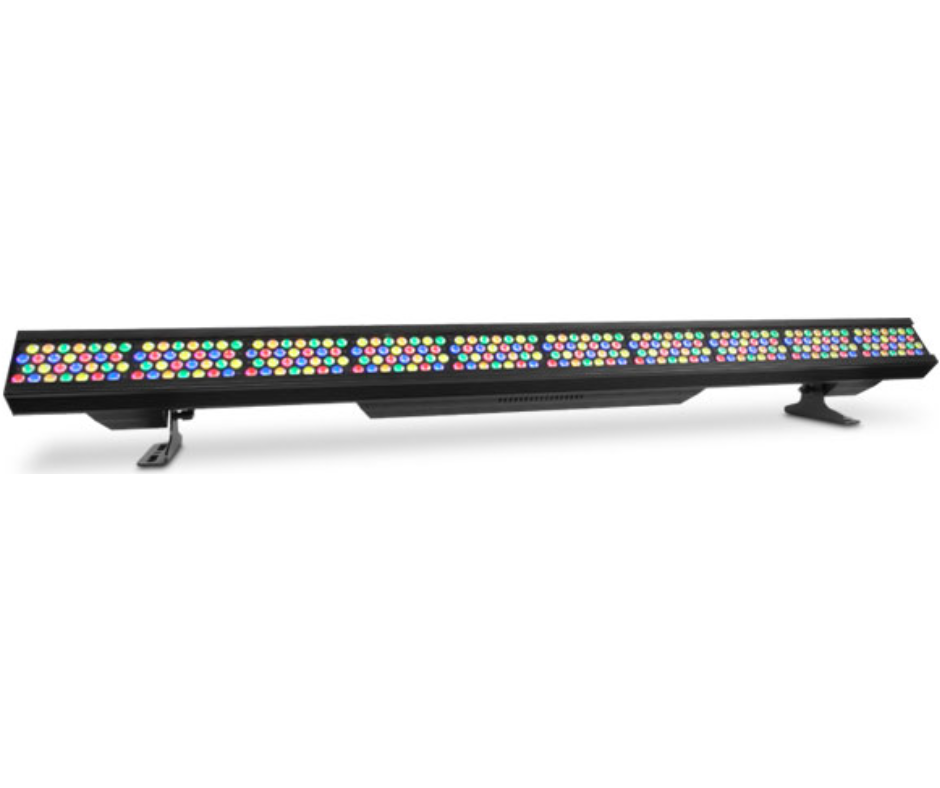

Chauvet Professional Ovation B2805FC(Chauvet Pro ovationb2805fc)
Full-Color LED Batten
The Chauvet Pro Ovation B-2805FC is a powerful, theatre-ready LED batten that features RGBA-Lime color mixing and advanced control capabilities for dynamic lighting in film, stage, and production environments. With a built-in holographic filter, it delivers exceptional cyc lighting and wall grazing with even, seamless color blending.
Chauvet Pro Ovation B-2805FC Competitive Differences
RGBA-Lime LED array with over 32,000 lumens of output
Supports DMX, RDM, Art-Net, and sACN protocols with 10-section control
Chauvet Pro Ovation B-2805FC Description
The Ovation B-2805FC stands as Chauvet Pro’s flagship batten fixture, utilizing 280 high-powered RGBAL LEDs to deliver exceptional brightness and color flexibility. With a max output of 32,673 lumens, it is capable of illuminating large backdrops or architectural surfaces with ease. Its RGBA-Lime system expands the color palette while offering high CRI whites and deep, saturated hues.
Designed for professional theater and broadcast use, the B-2805FC includes 16-bit dimming for both master and individual color channels, supporting smooth fades and precise color control. A holographic diffusion filter is included to improve vertical spread, making it ideal for seamless wall and cyc coverage.
Control options are comprehensive, including 3- and 5-pin DMX, RDM, Art-Net, and sACN. The fixture can be operated in up to 10 independently controlled sections, enabling pixel-mapped effects and advanced lighting designs. PWM frequency is selectable up to 25kHz to ensure flicker-free operation on camera.
With robust die-cast aluminum construction and near-silent operation, the Ovation B-2805FC is built for high-demand environments such as studios, live theater, and touring productions.
Model Features
280 high-output LEDs (RGBA-Lime)
10 individually controllable cells for pixel mapping
Art-Net™, sACN, DMX, and RDM support
Virtual color wheel with gel-matched presets
Color temperature presets from 2800K to 10000K
16-bit dimming and 8-bit dimming curves
Selectable PWM up to 25,000 Hz
Near-silent operation for studio and theater use
Model Specifications
Lumens: 32,673
CRI (3200K): 80
Beam Angle: 25° H x 20° V (52° H with filter)
Field Angle: 42° H x 40° V (83° H with filter)
Power Consumption: 636W @ 120V
Selectable PWM: 600 Hz – 25,000 Hz
Control Protocols: DMX, RDM, Art-Net™, sACN
DMX Personalities: 32 modes up to 135 channels
Dimensions: 69 x 8.26 x 8.13 in (1,753 x 210 x 207 mm)
