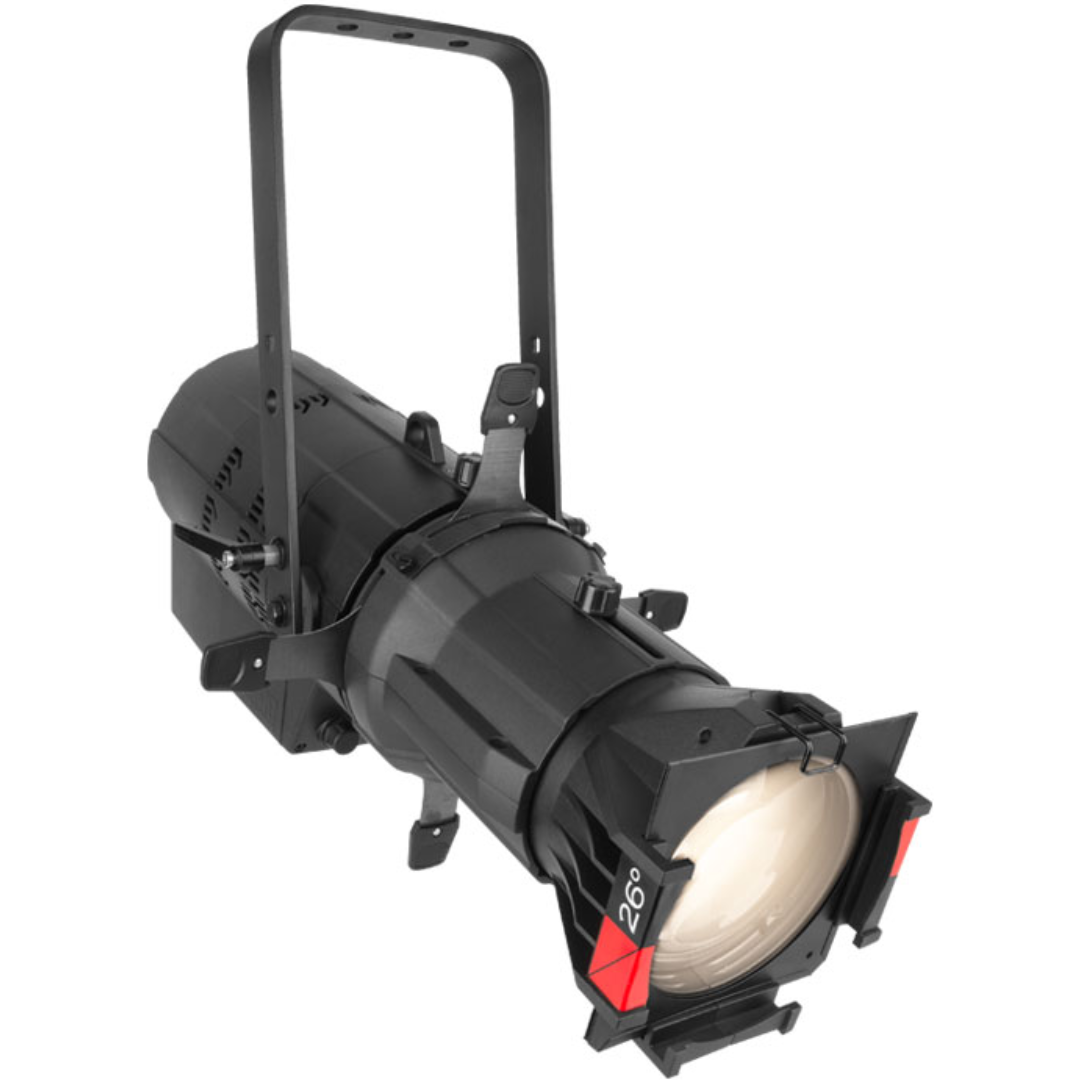

Chauvet Professional E260WW IP(Chauvet Pro Ovation E260WWIP)
Outdoor Warm White ERS Fixture
The Chauvet Pro Ovation E-260WW IP is a weatherproof ellipsoidal lighting fixture designed to deliver powerful warm white output in demanding outdoor or indoor environments. With a light engine exceeding the brightness of a traditional 750W HPL lamp, this fixture excels in theatrical, architectural, and live event settings where quality, durability, and precision are essential.
Chauvet Pro Ovation E-260WW IP Competitive Differences
230W warm white LED surpasses 750W tungsten output
Fully IP65-rated for reliable outdoor use
Chauvet Pro Ovation E-260WW IP Description
The Ovation E-260WW IP brings studio-quality performance to the outdoors with its high-CRI (96), 3149K warm white LED engine, and IP65-rated sealed construction. Engineered for long-term installation or mobile use in outdoor venues, this ERS-style fixture combines modern control and dimming with traditional lens compatibility for a familiar user experience.
Equipped with ultra-smooth 16-bit dimming and selectable PWM up to 25kHz, the E-260WW IP ensures flawless fades and flicker-free operation, even for broadcast applications. The fixture supports multiple dimming curves and operates silently, making it suitable for film, theater, and worship environments.
Designed for use with Chauvet’s standard Ovation lens tubes and beam shaping shutters, this fixture provides even light distribution and excellent gobo projection. Its sealed, fanless design is resistant to rain, dust, and debris, making it an ideal solution for outdoor architectural lighting or event venues exposed to the elements.
Model Features
High-output 230W warm white LED (3149K)
Output brighter than a 750W tungsten source
IP65-rated housing for permanent or seasonal outdoor use
16-bit master and color dimming for smooth transitions
Flat, even field for superior gobo projection
Selectable PWM (600 Hz to 25,000 Hz) for video-safe operation
DMX and RDM control with multiple personality modes
Model Specifications
Light Source: 230W warm white LED, 3149K
CRI: 96
Beam Angles: 5°–31° (lens dependent)
Field Angles: 8°–52° (lens dependent)
Max Output: 13,632 lumens (w/25°–50° wide lens)
Selectable PWM: 600Hz to 25,000Hz
DMX Channels: 2, 3, 4, or 7
Control Protocols: DMX, RDM
Dimensions (fixture only): 19.49 x 11.14 x 18.42 in (495 x 342 x 506 mm)
