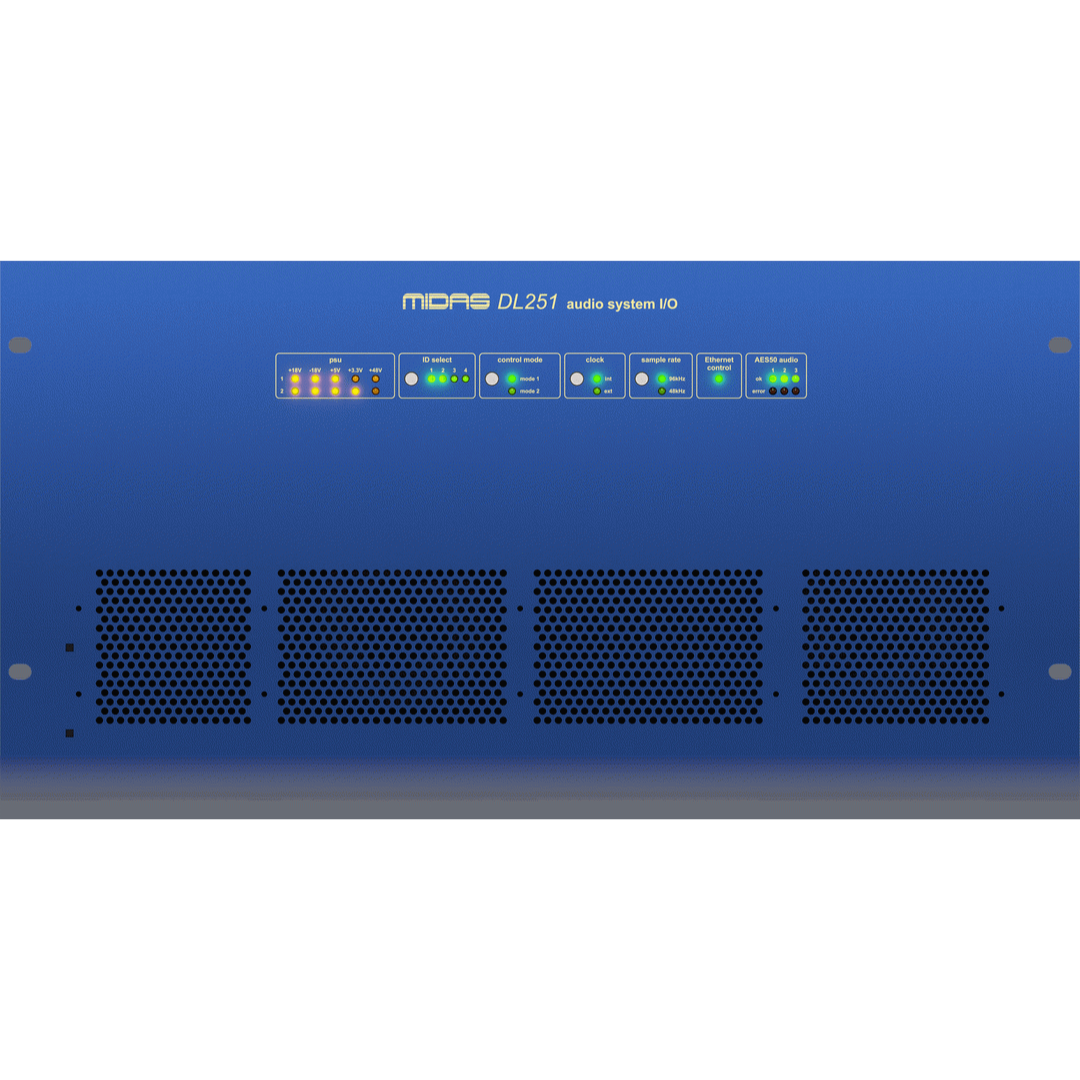

Midas MDS-DL251 | 48-In / 16-Out Digital Stagebox | 96kHz Operation & Remote Control

Midas MDS-DL251  (Midas DL251-UL)

48x16 Digital Stagebox with Remote Control

The Midas MDS-DL251 is a robust 48-input, 16-output stagebox designed to deliver pristine audio quality and networked control in live sound and broadcast applications. With selectable 48kHz or 96kHz sample rate operation, this unit integrates seamlessly into Midas digital systems and supports remote configuration up to 100 meters away via standard CAT5/5e cable.

Midas MDS-DL251 Competitive Differences

• 48 balanced inputs and 16 low-impedance line-level outputs
• Selectable sample rate (96kHz or 48kHz) for compatibility across systems

Midas MDS-DL251 Description

The MDS-DL251 is a high-performance digital stagebox designed for professional audio applications requiring expanded I/O and flexible integration. Its 48 mic/line inputs deliver detailed, transparent signal capture, while the 16 actively balanced outputs provide clean, low-impedance signal routing for front-of-house, monitors, or broadcast feeds. With programmable settings accessible via onboard controls or remotely from a compatible console, the DL251 supports rapid deployment and configuration. Its ability to operate over CAT5/5e cable up to 100 meters makes it ideal for stage-to-FOH connectivity in large venues and touring productions. Housed in a road-ready chassis, the MDS-DL251 offers tour-grade durability and reliability, delivering uncompromising performance in even the most demanding environments.

Model Features

• 48 mic/line inputs with Midas preamps
• 16 actively balanced line level outputs
• Selectable 96kHz or 48kHz sample rate operation
• Remote operation up to 100 meters over CAT5/5e
• Settings programmable from front panel or compatible console

Model Specifications

• Inputs: 48 mic/line
• Outputs: 16 actively balanced line level
• Remote Range: Up to 100m via CAT5/5e
• Sample Rate: Selectable 48kHz or 96kHz
• Dimensions: 48.26 x 22.15 x 41.33 cm
• Weight: 14.8 kg (32.6 lb)

What's In The Box

• Midas MDS-DL251 stagebox
• Power cable
• Rack mounting hardware (if included)
